panel & door: plastic film
refrigeration unit: plywood case
Insulation polyurethane cold stores panel with PPGI surface

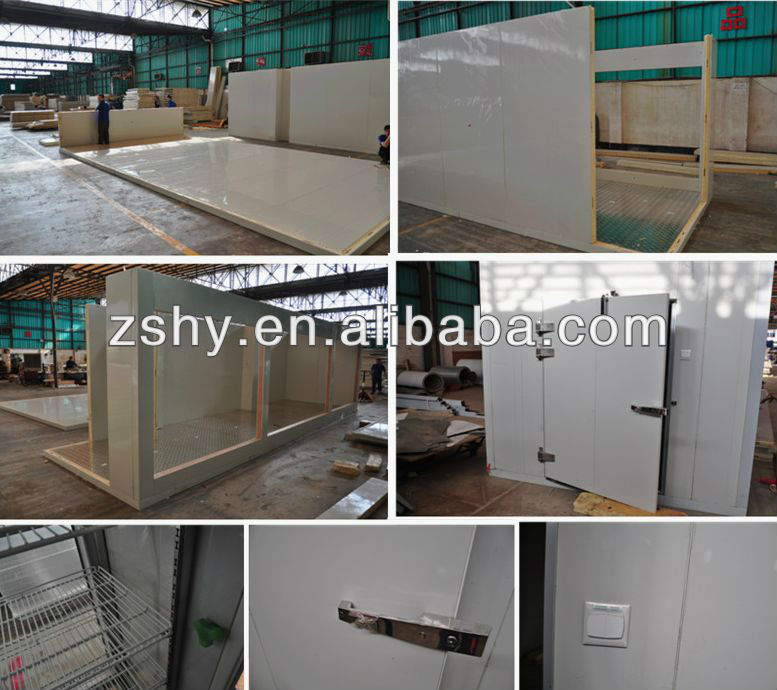

Features of our Cold storage Cold roomWalk in freezer Panel: 1. The cold storage room panel is durable in use, color lasting & coated layer keeping. 2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel
density is up to 40kg/m3 or above. 3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch 4. The hinged door panel of our cold-room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer. 5. The connection of our cold room panels are made with PE sealing rubber which is with high
quality sealing. 6. The connection of our cold room is with cam lock construction and excentric fasterners for
tight connection and sealing of the cold room.
Length (m) *Width (m)*Height (m) According to client's requirement .
polyurethane insulation panel,43kg/m3, fire retardant
cam lock type, use hexagonal key to assemble and disassemble
Type of door
hinge door, convex door, sliding door.
-50~+20 degree, optional
Purpose of cold room
fruit,vegetable,flower,fresh/frozen meat etc
Copeland / Bitzer / Sanyo etc
air cooled / water cooled
all necessary fittings are included, optional
Place to assemble
indoor/out door(concrete construction building/steel construction building)
220V/50HZ, 220V/60HZ, 380V/50HZ optional
1)Panel:polyurethane panels are of 100% polyurethane insulation foamed by high pressure, density about 43kg/m3,with flame retardant.The panels are convex(male)and concave(female) type,with cam locks preburried inside the panels,use hexagonal key assemble and disassemble.
2)Steel sheet cover: painted galvanized steel steel, we also have stucco embossed aluminum, stainless steel,and PVC stell.
3)Panel thickness: for the standard cold room is 100mm
50mm (operating temperature 5 or above) 75mm(operating temperature -5 or above) 100mm (operating temperature -25 or above) 150mm (operating temperature -45 or above) 200mm (operating temperature -55 or above)
for the painted galvanized steel, we have two kinds,i.e: surface with 0.326mm thick painted galvanzied steel and surface with 0.426mm thick painted galvanzied steel, now, we have promote the panel which surface with 0.326mm thick painted galvanzied steel, expecially the panel with 100mm and 150mm thick.
4)door: convex door,we also have hinge door, sliding door
