panel & door: plastic film
refrigeration unit: plywood case

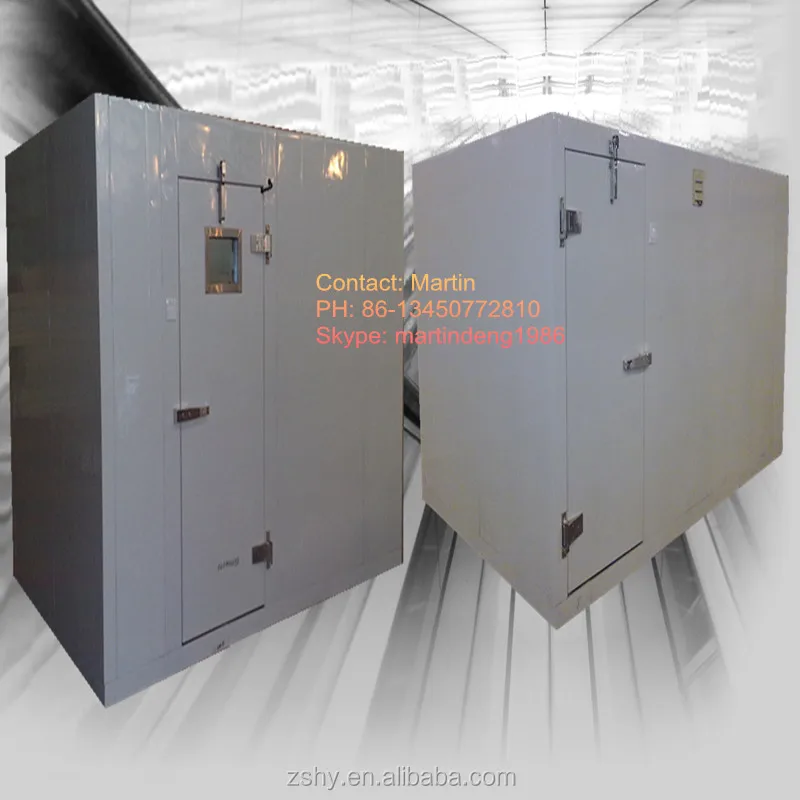

Storage Cold Room installed by PU/PIR insulation panel
Insulation Cold Room for Vegetables / Cold Room Equipment
Vegetable Storage Cold Room / Freezer Room, installed by Cam lock PU panels, use imported BASF / BAYER brand polyurethane foam, density is about 43kg/m3, with fire retardant, safety use
Widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory, fruit and vegetable warehouse,
egg storage, hotel, supermarket, hospital, blood bank, troops and laboratory.
OEM Cold Stores / Freezer Room is acceptable.
Our panel's advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k).The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish,Fireproofing Grade is B1.
It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world,
they promise the painted galvanized steel they produce will not fade in 15~20 years.
4. Gasket is around the edge of each Modular freezer room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

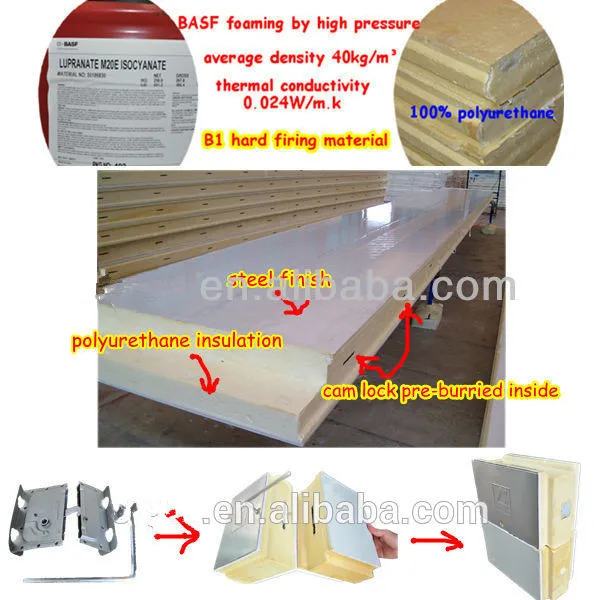

Cold Room Cam Lock Panel:
Polyurethane panels are of 100% polyurethane insulation foamed by high pressure, density about 43kg/m3,with flame retardant.The panels are convex(male)and concave(female) type,with cam locks preburried inside the panels,use hexagonal key assemble and disassemble.
Cold room panelSteel sheet cover:
painted galvanized steel steel, we also have stucco embossed aluminum, stainless steel,and PVC stell. The standard we use is painted galvanized steel sheet.
Cold Room / Freezer Room Floor design:
The modular cold storage room designed walking in, even the truck, you can choose the type, such as checkered plate, concrete floor or just normal galvanized steel panel.

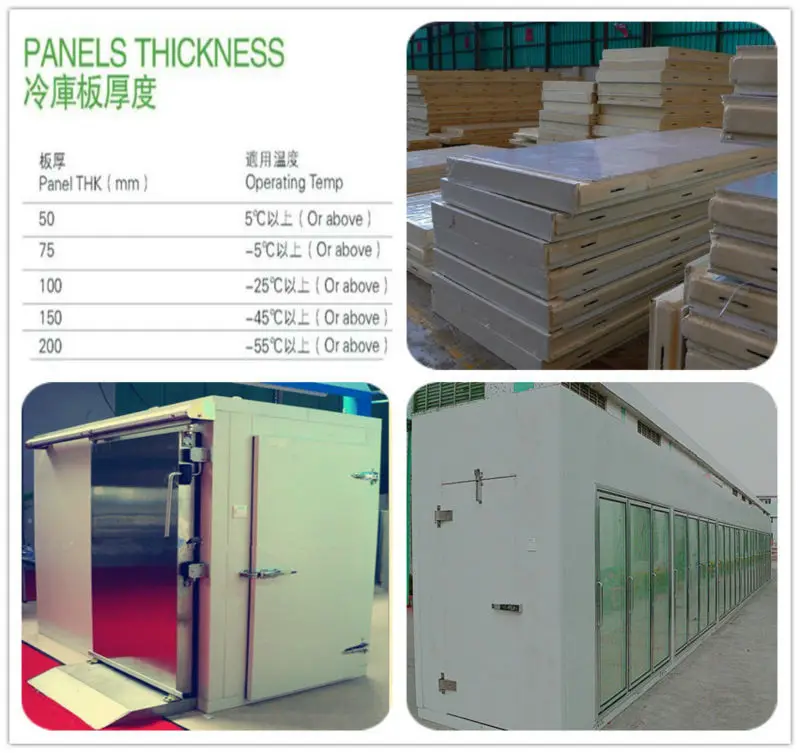

Cold Storage Room / Freezer Room Panel thickness: for the standard cold roomis 100mm
For the painted galvanized steel, we have two kinds,i.e: surface with 0.326mm thick painted galvanzied steel and surface with 0.426mm thick painted galvanzied steel, now, we have promote the panel which surface with 0.326mm thick painted galvanzied steel, expecially the panel with 100mm and 150mm thick.
Cold store door: Hinge door, convex door, sliding door optional 1. Convex door, standard size: 800mmW*1900mmH 2. Hinge door, standard size: 832mmW*1900mmH 3. Manual / electrical sliding door, standard size: W1200/1500mm * H2000mm *all the cold room doors are with safety knob mounted on the back of door panel for inside emergency opening *all the cold room doors are with heaters for defrosting.
Cold room condensing unit,we can design to desice how many and how big the unit is. --outside unit: Usually we choose Bitzer or Copeland or Danfoss Compressor --hermetic/ semi-hermetic/ monoblock --air cooled --refrigerant R404A
Packaging & Shipping
Cold Room Panel& Cold room condenser unitpackage:
For container load, we pack the panels with bubble paper, piece by piece, and pack the condenser unit and air cooler by plywood case .
For bulk cargo, we suggest all panels and refrigeration units should pack by plywood case for the safety shipment.
For better installation in the client's side, we have a mark on each panel, C stands for Ceiling panel, W stands for Wall panel and F stands for floor panel.
We also have number on each panel, when you install the cold room, you just need to follow our installation drawing, and follow the marked numbers, and the installation can be finished easily.
1. OEM Accepted
We can produce as the client's demand.
2. Good Quality:
We have strict quality control system.Good reputation from home and abroad.
3. Fast & best service Delivery
Three production lines, 1,500,000 Square Meters per Year.
4. Overseas installation service
We have experienced teams that can install cold rooms overseas.
5. After sale service
The techinical team will be willing to help you with any problems when using our products.
Foshan Argentdragon International Ltd.(Group) is located in Foshan City, China, an international city full of energy, beside Guangzhou. We are a large scale professional company integrated with R&D, manufacture, marketing and investment of commercial kitchenware.
We have four factories belong to us, under the production range of Surpermarker Refrigeration Equipments, Cold Room Equipments, Kitchen Refrigerators and Food Processing Machines.
We can support a full range of products, such as upright showcase, ice cream display, cake display, supermarket display, cold storage room, blast freezer, kitchen refrigerator, beverage processing machine, meat slicer, meat grinder, sausage stuffer, oven and fryer e.t.c.
For better design of your cold room, you need to give us the following information:
1. What's the Cool Room external size you require? (such as length, width, height) 2. What's the Cool Room inner temperatre? 3. What kind of food you will put into the Cool Room? 4. What kind of door for the Cool Room? Hinged door, sliding door, galss door? 5. What's the voltage for the Cool Room? 6. The Cool Room will be installed indoor or outdoor? 7. What's the ambient temperature?
