walk-in cold room / glass door cold room for supermarket

FOB Reference Price:Get Latest Price
$27.00 - $28.50 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Model Number:
custom-made
Lead Time:
Quantity(Square Meters) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Product Hightlights
Temperature Power(W) Dimension(L*W*H)
0~ +5 Celsius degree 2800 7500*1200*2300mm
Specifications
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Online support, Overseas third-party support available
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AG
Voltage:
380V
Weight:
910kg or above
Certification:
ISO9001:2008
Usage:
glass door cold room display beverages
panels material:
100mm Polyurethane insulate panel
cold room compressor:
Copeland unit
Feature:
reach-in type glass door cold room
cold room Doors:
9 glass doors & hinged door (with heater)
cold room warranty:
one year
panel fireproofing grade:
B1
cooling system:
air cooling
cold room shelves:
plastic shelves & stainless steel stand column
Supply Ability
Supply Ability:
4000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
plastic bags or Plywood Case
1. cold room panels: plastic bags
2. cold room Refrigeration Unit :Plywood Box
3. cold room glass door:Plywood Box
4. 20ft container to load this 9 glass doors display cold room
Port
Guangzhou ,CHINA
Lead Time :
Quantity(Square Meters) 1 - 1 >1
Est. Time(days) 20 To be negotiated

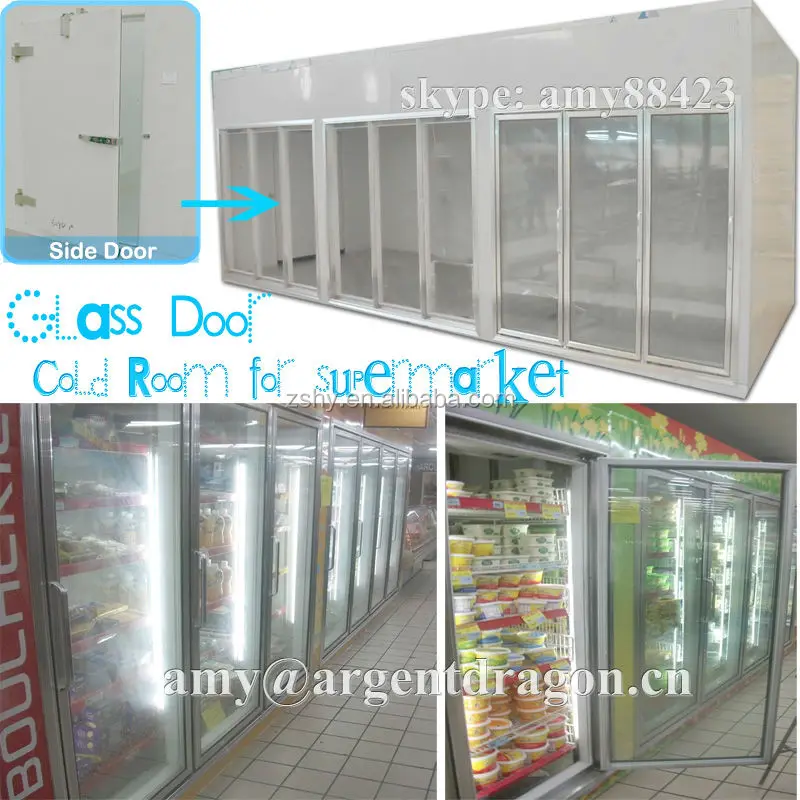

walk-in cold room / glass door cold room  for supermarket



walk-in cold room / glass door cold room  are ideal for display and storage of chilled products such as beverages, dairy products, flowers, ice cream, meat, etc. It is mainly applied to supermarket or flower store . our walk-in cold room / glass door cold room    is very hot sell in Australia, U.S.A., Maldives, Singapore, New Zealand,ect .


Following is the 9 glass doors cold room   for beverage displaying



1. cold room   External Dimension: 7500*1200*2300mm

2. panel: 0.326mm painted galvanized steel polyurethane panel thick 100mm
3. glass door size : W:725*H:1775 mm , with heater and LED Light .
4.  cold room    Temperature : 0~+5 degree C
5. Fittings : shelves , light , Ventilator ,electric wires ,ect .
6.  cold room   with sides door for people come into the glass door display cold room to place the food
7.  cold room   purpose is to display the beverage, milk , refrigerated food stuff in supermarket

  cold room    drawing
Product Description

cold room   panel Testing Specification

No.Inspection ItemUnitTechnology requirementInspection result
1Densitykg/m332~5043
2Compressing strength(10%deformation)Kpa≥ 160200
3Bending StregthKpa≥ 245331
4Absording rate%≤ 43
5Heating coefficient

W/m.k

0.0240.021
6Average burning time(vertical)S≤ 303
7Average burning height(vertical)s≤ 250250

  •  our cold room   panel advantage

1.Italy Brand BASF foaming material.
The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.

2.cold room panel is with fire retardant, self extinguish, Fireproofing Grade is B1.

3.The steel sheet we purchase from Baosteel and POSCO .we promise our panel will not fade in 20 years

4. Gasket is around the edge of each cold room panel ,which the cool air will not leak,and the hot air can not come in .



  • cold room   Installation

Every panel is  male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

  cold room   inner details



Dual-discharge  evaporator for the cold room   ,which is save space inside and keep the

cold room   inner temperature good

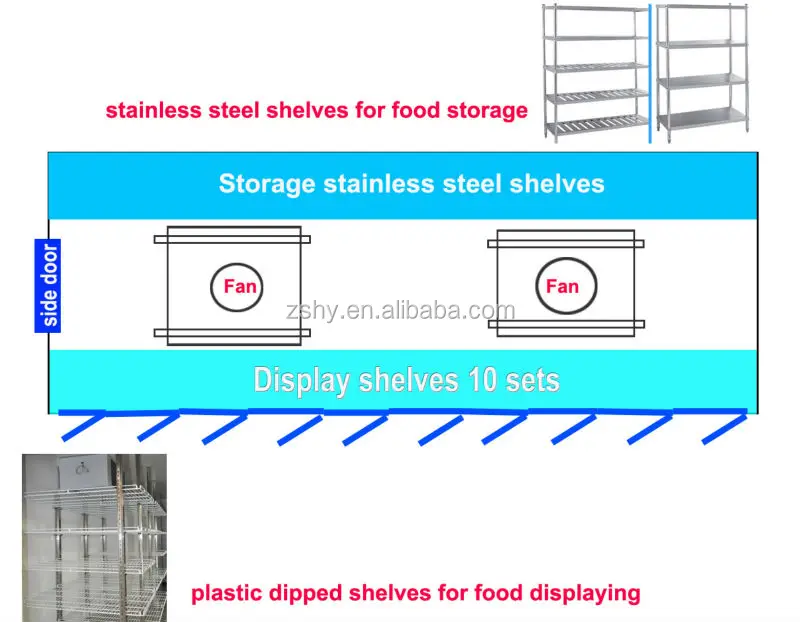

glass door & shelf for  cold room
1. door size : W:725*H:1775 mm , with LED Light & heater , 3 layers glass ( hollow glass)

We usually design side service door for goods supplement, there are hinge door and convex door optional.Hinge door is with hydraulic closer, can close automatically.

cold room    plastsic shelves with stainless steel stand column & stainless steel shelves hooks .
you can adjust the shelves hooks height to adjust the shelves inclination .

nonslip floor for   cold room

cold room    loading







Company Information



workshop for  cold room
our factory is more than 30,000 square meters .Our mordern workshop & complete set of imported CUSBER & OMS product line for polyurethane sandwiched panel .

Packaging & Shipping

  cold room  packaging



FAQ

   below sizes are only for reference, can be modified to customers' actual need.

Standard size glass door  cold room
2-glass door 2000*1300*2300mm
3-glass door 3000*1300*2300mm
4-glass door 3800*1300*2300mm
5-glass door4500*1300*2300mm
6-glass door 5200*1300*2300mm
7-glass door6000*1300*2300mm
8-glass door6800*1300*2300mm
9-glass door 7500*1300*2300mm
10-glass door 8200*1300*2300mm



we are a professional manufacturer,which help our clients to customize the
glass door cold room    .Pls answer us the following questions. Tks!
1.External dimension of the glass door cold room    ?(m)
2.What Kind of products is gonna store in the glass door cold room   ?
3.Required temperature inside the glass door cold room    (°C)?
4.How many glass doors for the glass door cold room   ?
5.Do you required the side service door for the glass door cold room    ?
